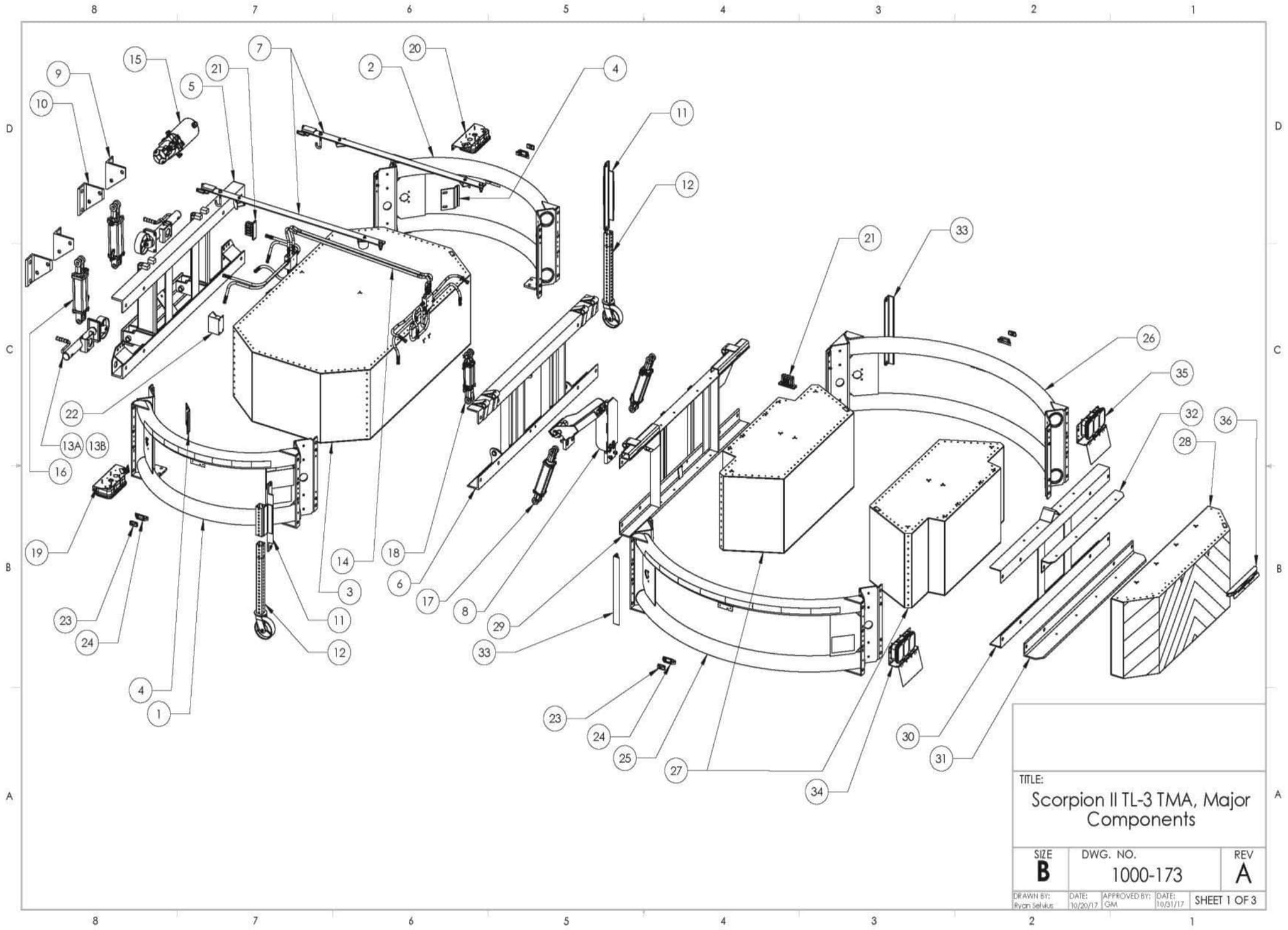

Scorpion II Truck Mounted Attenuator

For the TL-3 Model C, MASH

Drawing – Major Components

Parts List – Major Components

Item # Part # Item Description Quantity
Needed/
TMA
1 10200TL-MASH-KIT Strut Tube Assy, LH, MASH, Inc: C-Tape, Labels, Side Mkr Lt. Brkt, Vert. Reinforcing Bars 1
2 10200TR-MASH-KIT Strut Tube Assy, RH, MASH, Inc: C-Tape, Labels, Side Mkr Lt. Brkt, Vert. Reinforcing Bars 1
3 11400D Module D MASH Energy Absorbing Box, Scorpion II 1
4 10204 Energy Absorber Bracket 2
5 10300-KIT Backup Frame Assy, Powder Coated Black-Inc. hardware, grease fittings & Clevis Pins 1
6 11300E Rear Diaphragm, Strut, MASH, Powder Coated Black 1
7 10118 Tension Strap Set, Powder Coated Black, Includes Hardware 1
8 11800 Lockout Arm, MASH, Powder Coated Black, Includes Hinges and Hardware 1
9 10351 Hydraulic Bracket, RH 2
10 10352 Hydraulic Bracket, LH 2
11 10750 10750 Drop Jack Bracket, Universal, Powder Coated Black 2
12 10725 Drop Jack w/ 6” Caster 2
13A 10701MNJ Heavy Duty Swivel Jack w/ 6” Caster 2
13B 10701 Standard Swivel Jack 2
14 10600J Hydraulic Hose Kit, MASH Scorpion II 1
15 11010 Hydraulic Power Unit, 12V, Field Service Replacement 1
15 11011 Hydraulic Power Unit, 24V, Field Service Replacement 1
16 11200A Hydraulic Cylinder, MASH, 3” Bore, 8” Stroke, Fittings Installed 2
17 11617A Hydraulic Cylinder, MASH, 2-1/2” Bore, 8” Stroke, Fittings Installed 2
18 11812A Hydraulic Cylinder, MASH, 2” Bore, 4” Stroke, Fittings Installed 1
19 10508C-LED Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
19 10504C-LED-RYR Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Amber/Red 1
19 10504C-LED-YRW Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
20 10516C-LED Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
20 10516C-LED-RYR SStrut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Amber/Red 1
20 10516C-LED-YRW Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
21 10518 Junction Block 2
22 10507C Motion Alarm, 10-30 Volt 2
23 10573 Side Marker Light, Amber, 10-30 Volt LED 4
24 10520 Housing, Side Marker Light 4
25 10100L-MASH-KIT Cartridge Tube Assy, LH, MASH, Inc: C-Tape, Labels, Side Mkr Brkt, Vert. Reinforcing Bars 1
26 10100R-MASH-KIT Cartridge Tube Assy, LH, MASH, Inc: C-Tape, Labels, Side Mkr Brkt, Vert. Reinforcing Bars 1
27 11400C Module C, MASH Energy Absorbing Box, Scorpion II 2
28 10400A Module A, Energy Absorbing Box, 4” Yellow Avery MVP Sheeting 1
29 11300F Front Diaphragm, Cartridge, MASH, Powder Coated Black 1
30 11300H Rear Diaphragm, Cartridge, MASH, Powder Coated Black 1
31 11327 Bottom Angle, Cartridge, MASH, Powder Coated Black 1
32 10465 Top Angle, Cartridge, Powder Coated Black 1
33 10122 Vertical Support Angle, Powder Coated Black 2
34 10508B-LED Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
34 10504B-LED-RYR Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Amber Red 1
34 10504B-LED-YRW Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
35 10516B-LED Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
35 10505B-LED-RYR Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Amber Red 1
35 10505B-LED-YRW Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
36 10500B ICC Bar Light Assy w/ Cover Flap 1
37 10914 Conspicuity Tape, 11” Red/ 7” White, Sold by the Inch, Sturt Tube Requires 48” 96
38 10914 Conspicuity Tape, 11” Red/ 7” White, Sold by the Inch, Cartridge Tube Requires 72” 144

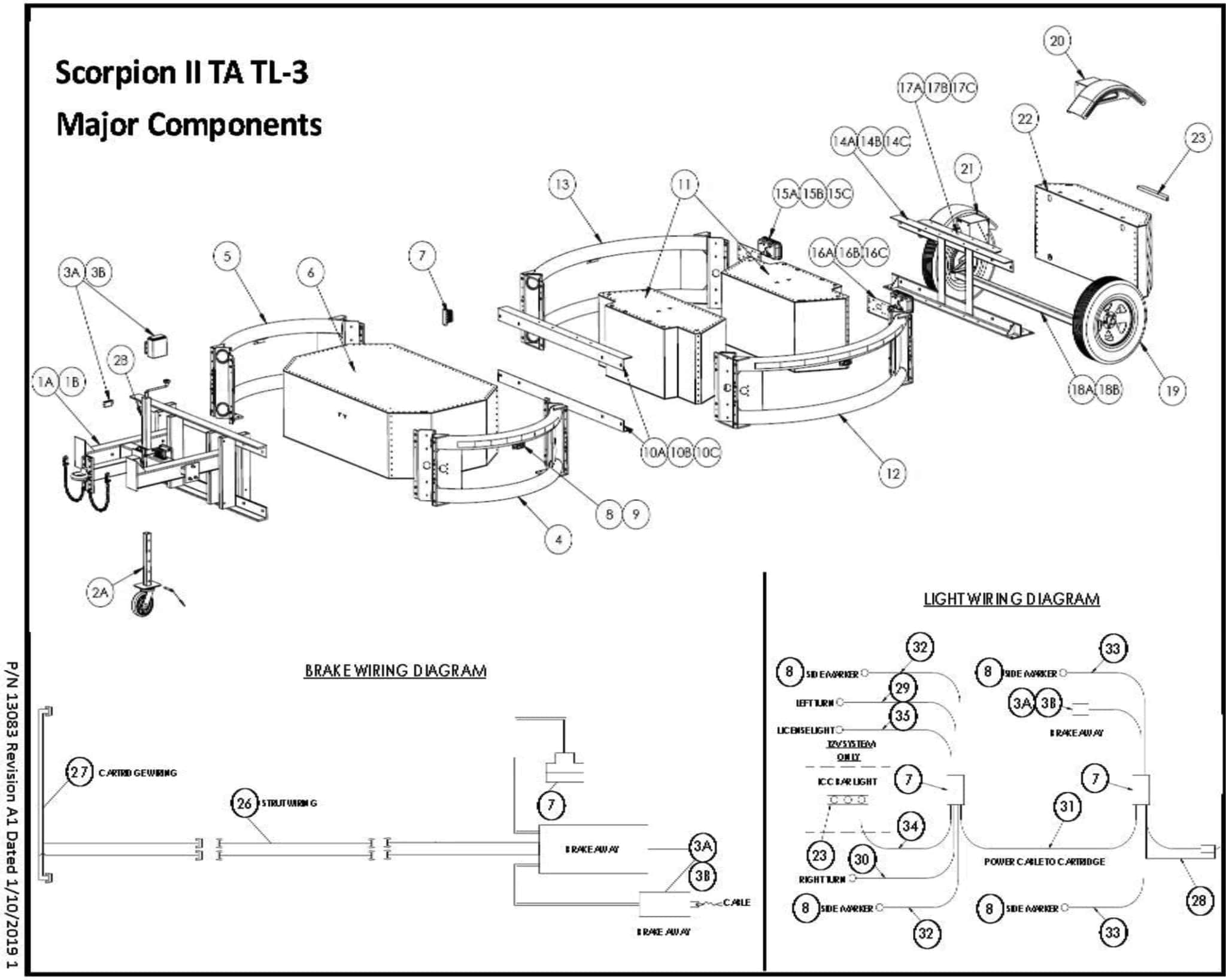

Scorpion II MASH Trailer Attenuator

For the TL-3 Trailer, MASH

Drawing – Major Components

Parts List – Major Components

Item # Part # Item Description Quantity
Needed/
TA
1A 13100 Tongue Assembly, Black Paint 1
1B 13100G Tongue Assembly, Galvanized 1
2A 13234 Jack, Inner Post w Caster 1
2B 13232 Jack Mechanism 1
3A 13154A Engager, Brake-Away 12V System 1
3B 13154A-24V Engager, Brake-Away 24V System 1
4 10200TL-MASH-KIT Strut Tube Assy, LH, MASH, Inc: C-Tape, Labels, Side Mkr Lt. Brkt, Vert. Reinforcing Bars 1
5 10200TR-MASH-KIT Strut Tube Assy, RH, MASH, Inc: C-Tape, Labels, Side Mkr Lt. Brkt, Vert. Reinforcing Bars 1
6 13300D Module D Energy Absorber, Scorpion II Trailer 1
7 10518 Junction Block 2
8 10573 Side Marker Light, 10-30 Volt, LED 4
9 10520 Housing, Side Marker Light 4
10A 13305 Diaphragm Angle, MASH, Powder Coated Steel 2
10B 13305G Diaphragm Angle, MASH, Galvanized Steel 2
10C 13366 Diaphragm Angle, MASH, Aluminum (For Euro TA Only) 2
11 11400C Module C Energy Absorber, MASH 2
12 10100L-MASH-KIT Cartridge Tube Assy, LH, MASH, Inc: C-Tape, Lbs, Sided Mkr Lt. Brkt, Vert. Reinforcing Bars 1
13 10100L-MASH-KIT Cartridge Tube Assy, RH, MASH, Inc: C-Tape, Lbs, Side Mkr Lt. Brkt, Vert. Reinforcing Bars 1
14A 13360 Rear Diaphragm, MASH, Powder Coated Black 1
14B 13360G Rear Diaphragm, MASH, Galvanized 1
14C 13320 Rear Diaphragm, MASH, Aluminum (For Euro TA Only) 1
15A 10516A-LED Tail Light Assembly, RH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
15B 10505A-LED-RYR Tail Light Assembly, RH, 10-30 Volt LED, Color Pattern: Red/Amber/Red 1
15C 10505A-LED-YRW Tail Light Assembly, RH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
16A 10508A-LED Tail Light Assembly, LH, 10-30 Volt LED, Color Pattern: Red/Red/White 1
16B 10504A-LED-RYR Tail Light Assembly, LH, 10-30 Volt LED, Color Pattern: Red/Amber/Red 1
16C 10504A-LED-YRW Tail Light Assembly, LH, 10-30 Volt LED, Color Pattern: Amber/Red/White 1
17A 10465 Rear Top Angle, Powder Coated Black 1
17B 10465G Rear Top Angle, Galvanized 1
17C 13167 Rear Top Angle, Aluminum (For Euro TA Only) 1
18A 13230 Axle w/ Electric Brakes, 3,500 lb., Powder Coated 1
18B 13231 Axle w/ Electric Brakes, 3,500 lb., Galvanized 1
19 13260 Wheel and Tire 2
20 13240P-L Plastic Fender Assy, LH, w/ Mounting Bracket, Hardware, & 12V LED Light 1
21 13240P-R Plastic Fender Assy, RH, w/ Mounting Bracket & Hardware 1
22 10400A Module A Energy Absorber, 4″ Yellow/Black Chevron Pattern 1
23 10557 ICC Bar Light, 12V, LED 1

Parts List – Brake Parts

Item # Part # Item Description Quantity
Reqd/
TA
26 13276 Electric Brake Cable, Strut 1
27 13274 Electric Brake Cable, Cartridge 1

Parts List – Electrical Parts

Item # Part # Item Description Quantity
Reqd/
TA
28 10511A Power Cable, 7 Way Plug 1
29 10519 Tail Light Cable Harness, LH, 120″ 1
30 10509 Tail Light Cable Harness, RH, 120″ 1
31 10510 Cartridge Power Cable, 144″ 1
32 10512 Side Marker Light Cable, Strut, 144″ 2
33 10513 Side Marker Light Cable, Cartridge, 180″ 2
34 10556 ICC Bar Light Cable, 168″ 2
35 13277 License Plate Light Cable 1
